Choosing an optical fiber patch panel - often called an ODF or optical distribution frame - is rarely just a matter of matching a fiber count to a line on a quotation. In a real telecom room, FTTH access network, enterprise LAN or data center, the panel also has to fix the incoming cable, protect splices, hold adapters, route patch cords, carry clear labels and leave room to grow. Get those details wrong and a cheap-looking panel quietly costs you time during installation, and again at every future upgrade.
This guide is written from the perspective of selecting and supplying fiber optic passive components for FTTH, telecom and data center projects. It walks through the decisions that actually matter on site - capacity, mounting, adapters, splicing and cable management - and ends with selection matrices, an RFQ checklist and an inspection checklist you can reuse on your next purchase.
What Is an Optical Fiber Patch Panel / ODF?
An optical fiber patch panel is a fiber management unit used to terminate, organize, splice, connect and protect optical fibers. You will find it in telecom rooms, data centers, FTTH access networks, enterprise networks and communication cabinets.
In day-to-day project language, "fiber optic patch panel," "optical fiber patch panel," "ODF" and "optical distribution frame" are often used interchangeably. The mechanical design varies, but the job is the same: to make fiber connections easier to manage, test, maintain and expand. If you want a fuller breakdown of where the terms diverge, this comparison of an ODF versus a patch panel in fiber optic systems is a good place to start.

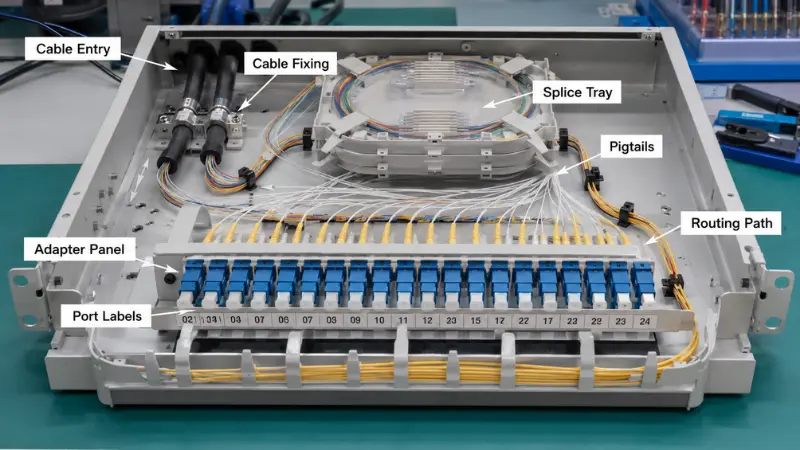

A typical fiber patch panel combines several elements:
- -Adapter panels that hold the SC, LC, FC or MPO couplers
- -Splice trays that protect fusion splices and store excess fiber
- -Fiber pigtails fused to the incoming cable
- -Cable fixing points and entry ports for strain relief
- -Internal routing paths that maintain bend radius
- -A patch cord management area on the front
- -Port labels or identification
-
Why Choosing the Right Fiber Patch Panel Matters?
The patch panel is usually a small slice of the total network budget, yet it has an outsized effect on installation quality and years of maintenance afterwards. A panel that suits the site lets installers route fibers cleanly, protect splice points, control bending stress and find any port quickly. A poorly chosen one creates crowded routing, awkward maintenance, stranded capacity and a messy patch field.
Before you commit to a model, it should answer three blunt questions: can it carry the fiber count you need now, can a technician install and maintain it without a fight, and can it grow with the network instead of being ripped out and replaced? If any answer is no, a lower sticker price rarely makes up for it.
Key Factors to Consider When Choosing an Optical Fiber Patch Panel
Fiber Count and Port Capacity

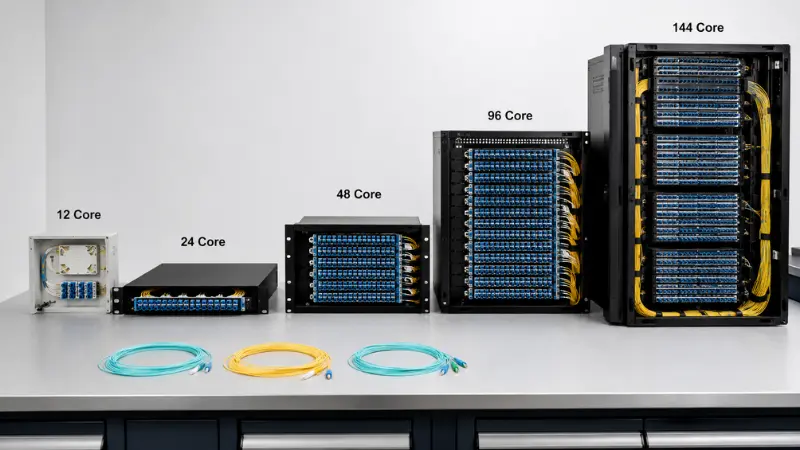

Fiber count is the first number most buyers check. Common ODF configurations run 12, 24, 48, 72, 96 and 144 cores. A small FTTH distribution point may be fine with a 12- or 24-core wall mount box; a telecom room or enterprise core often lands on 24- or 48-core rack panels; and high-density data center or backbone points push toward 96 or 144 cores.
The mistake is to size the panel to today's fiber count exactly. A workable rule of thumb is current fibers + spare capacity + rack space: take the fibers you are terminating now, add headroom for the links you can reasonably foresee, then check what your rack height actually allows. If a project lights 24 fibers but the site is likely to double, a 48-core panel usually costs far less than the labor of swapping the unit later.
As a starting point:
- Small access point - 12 to 24 cores
- Standard telecom room - 24 to 48 cores
- Larger distribution point - 72 to 96 cores
- High-density backbone or data center - 96 cores and up

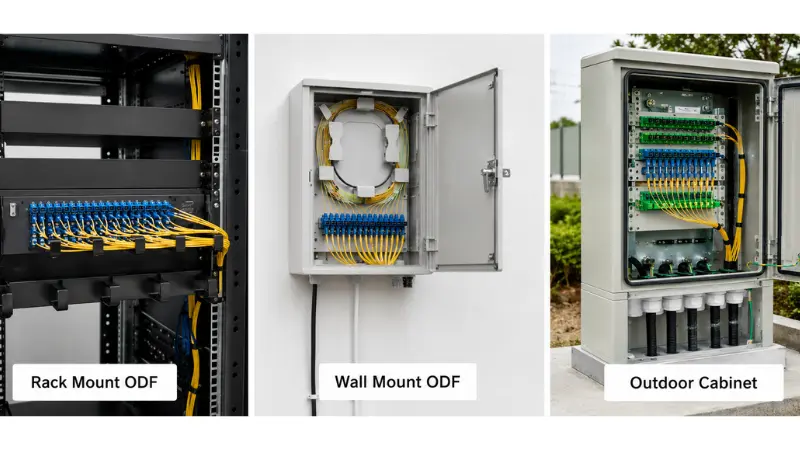

Rack Mount, Wall Mount or Outdoor Installation
The installation environment, more than anything else, dictates the panel's form. A 19-inch rack mount fiber patch panel drops neatly into standard racks alongside switches, OLTs and transmission gear, which is why it dominates telecom rooms and data centers. A wall mount ODF suits sites with no rack at all - FTTH access points, small building networks, corridor distribution points and branch offices. An outdoor fiber distribution cabinet is for street cabinets and semi-outdoor positions, where sealing, mechanical strength and cable entry matter far more than how compact or tidy the box looks.
Pin down the location before you choose: inside a 19-inch rack, on a wall, inside a telecom cabinet, in an outdoor access point, or in a high-density data center row. If the panel goes outdoors, treat ingress protection as a hard requirement rather than a nice-to-have - look for a stated IP rating, UV-resistant housing and proper sealed glands, and confirm it against the way your indoor and outdoor cable is installed.

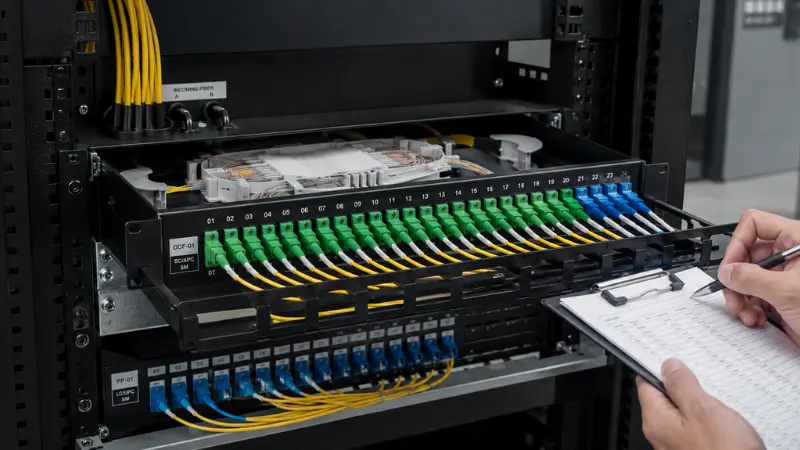

1U, 2U or Higher: Choosing Rack Height
For rack panels, height is its own decision and not just a function of fiber count. A 1U fiber optic patch panel saves the most rack space and is the default for data center rows, but the same 1U that comfortably holds 24 LC duplex ports can feel cramped once you try to add splice trays and route patch cords on the front. Stepping up to 2U buys you working room: deeper trays, easier coiling of slack fiber and a front patch field that does not fight you during moves, adds and changes.
A simple way to decide: choose 1U when density is the priority and the panel is mostly pre-terminated patching; choose 2U or higher when the same panel must also house field splicing, larger pigtail bundles or frequent reconfiguration. Counting only ports, and ignoring the space those ports need behind and in front of the adapters, is one of the most common sizing errors.
Fixed Type vs Sliding Type
Rack panels come in fixed and sliding designs. A fixed rack mount panel is simpler, more rigid and usually cheaper - a sensible choice where the fibers are set once and rarely touched again. A sliding panel pulls forward on rails so a technician can reach the splice trays, adapters and internal routing without unracking anything.
The trade-off is real money versus real time. In sites where ports are reconfigured often, a sliding tray lets you work on the connections without removing the whole panel from the rack, which on a busy frame can turn a half-hour job into a few minutes. For a low-touch link that will sit untouched for years, the fixed panel is the better value. Choose sliding when maintenance, testing or upgrades are frequent; choose fixed when they are not.
Adapter Type: SC, LC, FC or MPO
The adapter has to match the connectors already in your network, so this is a decision you confirm against the cable, pigtails and equipment ports rather than guess.
SC adapters remain the workhorse of FTTH, FTTx and telecom access. In PON and FTTH, SC/APC is the usual choice because the angled 8-degree end face reflects stray light back into the cladding instead of the core, holding return loss low - exactly what passive optical splitters need. SC/UPC shows up in other standard links where that angle is not required. The polish is not interchangeable: APC mates only with APC, and forcing an APC ferrule against a UPC one damages both. If the polish question is new to you, this explainer on the differences between PC, UPC and APC sets it out clearly. Return loss and insertion loss themselves are graded under IEC fiber optic interconnect standards, which is the reference your supplier's datasheet should trace back to.
LC adapters dominate data centers and high-density equipment because the LC connector is roughly half the footprint of SC. That size difference is the whole point: an LC duplex panel fits far more ports into the same 1U than an SC panel can, which matters when every rack unit is contested. Most switch and transceiver ports - SFP, SFP+, QSFP breakouts - terminate in LC, so the panel usually follows the equipment.
FC adapters, with their threaded coupling, still appear in some telecom, test and measurement or legacy positions where a screw-on connection resists vibration. MPO/MTP adapter panels are a different category again: they carry 8, 12 or 24 fibers in a single ferrule and exist to make high-density and pre-terminated cabling practical, feeding trunk-and-cassette systems in the data center. If you are weighing density options for a dense build, this practical guide on comparing LC with MTP/MPO is worth reading first.
Before you order, settle a few things: connector type (SC, LC, FC, ST, MPO/MTP); polish (UPC or APC); simplex, duplex or quad adapter; single-mode or multimode (these are not mixable on a link); and whether the panel ships loaded with adapters and pigtails or bare. A quick decision shortcut:
- Choose SC/APC for PON, FTTH and most access distribution.
- Choose LC, usually duplex, when port density or switch-side termination drives the design.
- Choose FC only where a threaded, vibration-resistant interface is specified.
- Choose MPO/MTP for backbone trunks and pre-terminated high-density cabling.
Loaded vs Unloaded Patch Panel
One question that catches buyers off guard is whether the panel arrives loaded or unloaded. A loaded fiber patch panel comes with the adapters fitted and, often, pigtails pre-installed, so the field team only has to splice and patch. An unloaded fiber patch panel is an empty chassis: you add the adapter plates and pigtails yourself, which gives flexibility to mix connector types or change configuration but adds assembly time on site.
Choose a loaded panel when the connector type is fixed, volumes are repeatable and you want to minimize labor in the field. Choose unloaded when the project still has open variables - different polish types across sites, a transition between connector standards, or a desire to stock one chassis and populate it as needed. If you are still deciding how those fibers get terminated in the first place, this comparison of fast connectors against fusion splicing is a useful companion. Either way, make the supplier state loaded or unloaded explicitly on the quote, because "patch panel" alone does not tell you what is in the box.
Splicing Requirement and Splice Tray Design
Some panels only patch pre-terminated cables; others have to splice incoming fiber. If the optical cable must be fused to pigtails on site, the panel needs enough splice trays, splice sleeves and storage to coil the fiber without tight bends. A loose tube outdoor cable, for example, brings in long buffer tubes that need somewhere to sit, so a tray that is fine for a tidy indoor cable can be overwhelmed in the field.
Tray capacity is the detail people skip. A single tray typically holds a fixed number of splices and protective sleeves; exceed it and technicians start stacking fibers, which makes later maintenance miserable and risks the very splices you are trying to protect. Confirm how many fibers will be spliced, that there are enough trays for them with a little spare, whether pigtails are included or ordered separately, and that the tray can still be reached after the panel is full. If you want the background on the join itself, this overview explains the purpose of fusion splicing.
For pre-terminated cabling, splice trays may be unnecessary, and the focus shifts to adapter plates, cable fixing and front-side patch cord routing instead.
Cable Entry, Routing and Bend Radius
Enough ports is not the same as good fiber management. The panel also has to let cables and patch cords enter, route and leave without a fight. Check the entry direction against the site first - some panels take the cable from the rear, others from the side or top, and outdoor cabinets need sealed glands. Rack panels should give you a fixing point and strain relief so the weight of the incoming cable never pulls on the splices.
Inside, fibers need a clear path, and patch cords should not block access to the adapters or trays. The routing also has to respect bend radius: bending fiber tighter than its rated minimum drives up insertion loss and, over time, can crack the glass. Rather than trusting a number you read somewhere, follow the cable and connector manufacturer's stated minimum bend radius - bend-insensitive fibers defined in the ITU-T G.657 recommendation tolerate tighter routing, but the spec sheet, not guesswork, is the authority. A panel that handles this well gives you fixing points, smooth internal routing, slack storage, a clean separation between incoming cable and patch cords, and room to actually get your hands in for maintenance.
Labeling and Future Expansion
Labeling gets ignored at procurement and then becomes critical the first time someone has to trace a circuit under pressure. Clear port identification is what lets a technician test a link, isolate a fault and avoid pulling the wrong patch cord - and on a large frame, poor labeling quietly adds time to every maintenance call and creates real risk of disconnecting a live service.
Expansion is the other half. If every port is used on day one, the next request for service means another panel, more rack space and more cabling. Leaving spare adapter positions, or choosing a panel with modular adapter plates, makes it far easier to add capacity or change connector types during an upgrade instead of starting over.
Optical Fiber Patch Panel Types Compared
| Patch panel type | Best for | Main advantage | Selection note |
|---|---|---|---|
| Fixed rack mount panel | Standard telecom rooms and equipment racks | Simple, rigid and cost-effective | Fine where access is infrequent |
| Sliding rack mount panel | Data centers and busy telecom rooms | Front access to trays without unracking | Worth it for frequent moves and changes |
| Wall mount ODF | FTTH access, small LAN and building distribution | Saves rack space | Check entry direction and splice capacity |
| Outdoor distribution cabinet | Street cabinets and outdoor access | Environmental protection | Watch IP rating, strength and sealed glands |
| MPO high-density panel | Data center and backbone cabling | Most fibers per rack unit | For pre-terminated trunk-and-cassette systems |
Quick Selection Guide: Which ODF Should You Choose?
The factors above interact, so here is a condensed view that maps common project scenarios to a sensible default. Treat it as a starting point and adjust for your own rack space and equipment interfaces.
| Project scenario | Recommended panel | Adapter | Splicing | Notes |
|---|---|---|---|---|
| Small FTTH access point | Wall mount ODF, 12–24 core | SC/APC | Yes | Compact; easy subscriber labeling |
| Enterprise LAN / standard telecom room | 19-inch rack ODF, 24–48 core | SC or LC | Often | Match the adapter to the equipment side |
| Data center row | 1U LC or MPO panel | LC duplex or MPO/MTP | Usually no | High density; pre-terminated cabling |
| Telecom room with outdoor cable | Rack ODF, 48 core and up, 2U if needed | SC or LC | Yes | Trays, cable fixing and slack storage |
| Outdoor access point | Outdoor distribution cabinet | SC/APC | Yes | IP rating, UV resistance, sealed glands |
Practical Selection Examples
Example 1: Small FTTH Distribution Point
Picture a curbside or basement distribution point feeding a cluster of subscribers from a PON. Drop and distribution cables come in, fibers are spliced to pigtails, and subscriber lines patch out. Here a wall mount ODF of 12 or 24 cores is usually enough, fitted with SC/APC adapters to keep return loss low for the splitter feed. The constraints that bite are physical: limited wall space, a drop cable that needs proper strain relief, and labeling clear enough that the next technician can find the right subscriber without tracing every fiber. Confirm the box has a splice tray sized for the count, and that the PLC splitter feeding it is accounted for in the fiber budget. For the wider parts list on a PON build, this FTTH passive components procurement guide is a helpful reference.
Example 2: Data Center 1U Rack Installation
In a data center row, rack space is scarce and port density rules. The panel is almost always 19-inch, 1U where possible, populated with LC duplex adapters or MPO/MTP for trunk-and-cassette cabling. Most links are pre-terminated, so splicing is rare and the emphasis shifts to a clean front patch field, accurate labeling and a modular layout that lets you add cassettes later. A sliding 1U panel earns its place here: when a technician has to re-patch a live row, pulling the panel forward beats working blind behind the adapters. Don't size by port count alone - check that there is enough room to dress the patch cords in front of a fully loaded panel.
Example 3: Telecom Room with Splicing Requirement
When outdoor optical cable lands in a telecom room and has to be spliced to pigtails, a rack mount ODF with proper splice trays is the right tool. The cable needs fixing and strain relief at entry, grounding for any metallic strength member if the cable design calls for it, splice protection, and enough storage to coil slack without tight bends. Capacity here is typically 24, 48 cores or more, with SC or LC adapters chosen to match the transmission or OLT interface, and rear or side entry to suit the rack layout. If the count or the maintenance frequency is high, stepping from 1U to 2U pays for itself in working room. A loaded panel - adapters and pigtails pre-fitted, in a 24-core box with a splice tray style build - shortens the field work; an unloaded chassis trades that for flexibility.
Common Mistakes to Avoid
Choosing only by fiber count
A 48-core panel is not automatically better than a 24-core one. If the internal routing is cramped or the trays are hard to reach, the bigger number just buys you a harder install. Weigh capacity together with rack height, adapter type, tray space and routing.
Ignoring maintenance access
Some panels look compact and turn out to be miserable to service once racked. If the front clearance is tight, a fixed panel makes every future change harder; where links are reconfigured often, the sliding type usually saves more than it costs.
Mixing connector types without a plan
SC, LC, FC and MPO are not interchangeable, and neither are APC and UPC polishes. Confirm the connector and polish used by the cable, pigtail, transceiver, OLT, switch or transmission gear before you order, or you will own a panel that cannot mate with the network.
Forgetting future expansion
A fully occupied panel on day one is a problem deferred, not avoided. Reserve spare ports or pick a modular design when the network is likely to grow.
Overlooking cable entry direction
If the entry does not match the site - rear, side, top or bottom - the install gets messy and the strain relief rarely ends up where you need it. Confirm the direction against the rack or wall layout up front.
What to Tell Your Supplier Before Requesting a Quote
An accurate quotation depends on a few specifics. Send these and a supplier can recommend the right panel instead of defaulting to the cheapest standard model:
- Application - FTTH, data center, telecom room, enterprise LAN or outdoor cabinet
- Installation type - rack mount, wall mount or outdoor
- Rack size - 19-inch, and 1U, 2U or custom height
- Fiber count - 12, 24, 48, 72, 96, 144 or other
- Adapter type - SC, LC, FC, ST, MPO/MTP
- Polish - UPC or APC
- Fiber type - single-mode or multimode
- Splicing - with or without splice trays
- Loaded or unloaded panel
- Cable entry direction
- Pigtail and patch cord requirements
- Labeling and packaging needs
- Expected future expansion
Inspection Checklist: Verifying the Panel on Arrival
Once the panels arrive, a quick incoming check saves grief on site. Beyond the obvious count, confirm the details that suppliers occasionally trim to hit a price:
- Adapter count and type match the order, and the polish (APC or UPC) is correct
- If loaded, pigtails are the right connector, length and fiber type, and seated cleanly
- Splice trays are present in the agreed number, with sleeves and slack capacity
- Housing material and finish match spec - for outdoor units, check the sealing and IP rating
- Cable glands, mounting kit, labels and the accessory pack are all in the box
- Insertion loss and return loss test data is provided where it was promised
If the build includes terminating equipment in the same rack, this walkthrough on installing a patch panel and switch covers the on-site sequence.
Frequently Asked Questions
Q: What Is The Difference Between An ODF And A Fiber Patch Panel?
A: An ODF, or optical distribution frame, is the broader fiber management system for termination, splicing, patching and storage, while a fiber patch panel is usually the rack- or wall-mounted unit doing similar connection and management work. Their functions overlap so heavily that the terms are often used together, and at low fiber counts the distinction largely disappears.
Q: Should I Buy A Loaded Or Unloaded Fiber Patch Panel?
A: A loaded panel ships with adapters, and often pigtails, fitted, which minimizes field labor when the connector type is fixed and volumes are repeatable. An unloaded panel is an empty chassis you populate yourself, which is better when connector types vary across sites or you want to stock one chassis and configure it later. Whichever you pick, have the supplier state it on the quote.
Q: How Do I Choose Between A 1U And A 2U Fiber Patch Panel?
A: Choose 1U when rack space is tight and the work is mostly pre-terminated patching. Move to 2U when the same panel must also hold splice trays, larger pigtail bundles or frequent reconfiguration - the extra height buys working room behind and in front of the adapters. Do not size by port count alone.
Q: Should I Choose SC/APC Or LC/UPC?
A: Use SC/APC for PON, FTTH and most access distribution, where the angled polish keeps return loss low. Use LC/UPC when port density, or switch- and transceiver-side termination, drives the design. The deciding factor is the connector your existing cable and equipment already use; the panel should follow it.
Q: How Many Ports Should A Fiber Patch Panel Have?
A: Match the current links and leave headroom. Small sites are often fine with 12 or 24 ports; telecom rooms and data centers commonly need 48, 96 or higher-density panels. A useful rule is current fibers plus realistic spare capacity, checked against the rack space you actually have.
Q: When Do I Need A Sliding Fiber Patch Panel?
A: Choose sliding when technicians need regular access to splice trays, internal routing and adapters - racks with frequent moves, adds, changes, testing or planned upgrades. For links that sit untouched for years, a fixed panel is the better value.
Q: Do All Fiber Patch Panels Need Splice Trays?
A: No. Pre-terminated cabling may not need trays at all. Field fusion splicing does, and then the panel must carry enough trays, sleeves and slack storage for the fiber count, with a little spare.
Q: Is An MPO Patch Panel Suitable For Ordinary FTTH?
A: Usually not. MPO/MTP exists for high-density and pre-terminated backbone and data center cabling. A typical FTTH access point is better served by an SC/APC wall mount ODF; MPO adds cost and complexity that PON access rarely needs.
Q: What Is The Difference Between An ODF And A Fiber Termination Box?
A: A fiber termination box is generally a smaller enclosure for terminating and protecting a limited number of fibers, often at the access edge, while an ODF or patch panel is built for higher density and ongoing patching in a rack or frame. The line blurs at low counts, where a wall mount ODF and a distribution box overlap in practice.
Conclusion
The right optical fiber patch panel matches far more than a fiber count. It fits the installation environment, the connector and polish your network already uses, the splicing method, the cable entry, the routing space, the way it will be maintained and the room it leaves to grow. A small FTTH site is well served by a compact wall mount ODF; a data center leans toward a high-density LC or MPO rack panel; a telecom room taking outdoor cable usually wants a rack ODF with proper trays and cable management.
Define the environment and the key parameters before you order, share them with your supplier, and check the panel against them on arrival. That discipline is what produces a panel that is easier to install, easier to maintain and dependable for the life of the network.
