Outdoor Waterproof Fiber Patch Cord Specifications
Every value below is what we build and test to. If your project spec asks for something outside this range, tell us and our engineers will say plainly whether it can be done.
| Construction | Armored cable assembly with environmentally sealed connectors |
|---|---|
| Fiber type | Single-mode OS2 / G.657A; multimode OM1–OM4 |
| Insertion loss | ≤0.3 dB typical (varies by connector type) |
| Return loss | ≥50 dB (UPC) / ≥60 dB (APC) |
| Ingress protection | IP67 (temporary immersion) or IP68 (continuous submersion), fully dust-tight |
| Operating / storage temperature | -40°C to +70°C |
| Tensile strength | ≥180 N at the cord-to-cable junction |
| Crush resistance | ≥1000 N/100 mm (short term) |
| Mating durability | ≥500 cycles |
| Locking | Threaded or bayonet, one-hand blind mating |
| Outdoor interfaces | PDLC, ODVA, FullAXS, ODC, AARC and other outdoor types |
| Standard interfaces | LC / SC / FC / ST, simplex or duplex |
| Strength member / armor | Stainless steel tube or aramid yarn |
| Cable OD | 5.0 mm or 7.0 mm round; flat drop cable |
| Jacket | LSZH / TPU / PVC (optional) |
| Length | 0.3 m to 500 m, cut to order |
| Installation | Direct burial, duct or aerial |
Need ODVA on one end and LC on the other? Evolux builds mixed-interface outdoor patch cables to your radio and equipment ports. Send the pairing and we'll confirm loss values in the quote.
An IP68 Sealed Fiber Optic Patch Cable for Links Without a Cabinet
Most patch cords live inside a rack. This one is built for the stretch of your network that has no roof over it: the BBU-to-RRU run on a tower, the drop from a distribution box to a subscriber wall, or a link across a dusty plant floor.
Each connector is sealed to IP67 or IP68, the cable carries stainless steel or aramid armor, and the full assembly is rated from -40°C to +70°C. For a sourcing team, that means one product family covers tower, access and industrial routes, with the interface, fiber and length changed per project rather than a new supplier for each.
Why Telecom Contractors Buy Our Wholesale Waterproof Fiber Patch Cords
Field failures on outdoor fiber almost always come back to three things: water at the end face, connectors that work loose, and cable damaged during installation. Each is designed out.
Water Stays Out of the Connection
The seal is fully dust-tight and holds under temporary immersion (IP67) or continuous submersion (IP68). Across a rollout of hundreds of radio sites or drop points, this removes the slow attenuation creep that sends crews back after every heavy rain.
Locks That Hold on a Swaying Tower
Threaded or bayonet coupling lets a climber mate the plug one-handed without seeing the port. Vibration can't back it out, so wind-loaded antenna mounts stop producing intermittent-link tickets. Rated for 500+ mating cycles of routine maintenance.
One Cable for Burial, Duct or Aerial
With ≥1000 N/100 mm crush resistance and ≥180 N tensile strength at the junction, crews can bury, pull or hang the same assembly without adding protective conduit. Fewer SKUs to stock, fewer materials to specify per route.
Planning a multi-site rollout? Ask for volume pricing on Evolux IP68 fiber jumpers and get a free sample in your exact configuration for field testing first.
Contract-Grade Armored Fiber Jumper Materials and Sealing Design
Jacket Chosen for the Route
LSZH is the right call where the cord enters shelters, buildings or equipment rooms, since low smoke and zero halogen limit toxic emissions in a fire and meet many operator safety specs. TPU handles abrasion and repeated flexing outdoors. PVC is available as a lower-cost option for milder runs.
5.0 mm, 7.0 mm or Flat Drop
The round 5.0 mm and 7.0 mm cables carry the armor for tower and buried runs. Flat drop cable is easier to clip along walls and eaves for last-meter FTTH work, where a slim profile matters more than bulk.
Fiber That Suits the Link
OS2 single-mode for fronthaul and access, or bend-insensitive G.657A when the cable has to turn tightly inside enclosures and around brackets. OM1–OM4 multimode is available for short 10G runs inside industrial sites.
Project-Ready Outdoor Patch Cords for FTTA, FTTH and Industrial Sites
Not sure which build fits your job? Start from the site type below. Each card lists the configuration our customers typically order.
FTTA and 5G Base Stations
Typical build: ODVA, PDLC or FullAXS to LC · OS2 · IP67 · 7.0 mm armored
FTTH Outdoor Access
Drop jumpers from distribution boxes to subscriber premises by burial, duct or aerial routing.
Typical build: ODC or SC · G.657A · flat drop or 5.0 mm · IP68 for buried runs
Industrial and Harsh Environments
Typical build: LC duplex · OM3/OM4 · TPU jacket · IP67
Broadcast and Telecom Nodes
Outdoor network points that need UV and corrosion resistance through years of sun and salt air.
Typical build: sealed outdoor interface · OS2 · armored · LSZH or TPU
Custom Outdoor Waterproof Fiber Patch Cord Built to Your Site Drawings
Send a site drawing, a BOM line or just a photo of the port, and we'll build the assembly around it. As an OEM fiber patch cord manufacturer, Evolux sets both ends independently, so the radio side and the equipment side each get the interface they actually need.
Lengths are cut from 0.3 m to 500 m, so tower heights and drop distances are ordered exact instead of coiled on site. Distributors and operators can also add private labels, printed cable markings and branded cartons carrying their own part numbers.
What to Send for a Quote in 24 Hours
- Connector on each end (e.g. ODVA to LC duplex)
- Fiber type: OS2, G.657A or OM1–OM4
- IP67 or IP68, and how the cable is installed
- Cable OD and jacket (LSZH / TPU / PVC)
- Lengths and quantity per length
- Labeling or packaging requirements
Factory-Tested Waterproof Fiber Optic Jumpers Checked Before Shipment
A sealed connector can't be cleaned in the field without opening it, so the end face has to be right when it leaves us. These are the checks each weatherproof jumper goes through.
| Check | What it protects on your project |
|---|---|
| Insertion loss | Your link budget, at ≤0.3 dB typical per connection |
| Return loss | Fronthaul signal quality, at ≥50 dB UPC / ≥60 dB APC |
| End-face inspection | No scratch or contamination sealed inside the plug |
| Mating condition and repeatability | Stable loss after repeated connect and disconnect |
| Dimensions | Correct fit in your enclosures and radio ports |
| Tensile and durability | Cable junction survives installation pulls |
Ask for test data on your configuration when you request a quote.
Bulk-Order Outdoor Fiber Patch Cables Packed and Labeled Your Way
Large rollouts go smoother when the boxes match the job. Your part numbers, label content, packaging format and carton marking are set to your requirements before production starts, so cords arrive ready to hand to installation crews and easy to trace back to each order.
For distributors, the same service covers private-label packaging, so every cord reaches your customers under your own brand.
Test an Outdoor Waterproof Fiber Patch Cord Sample Before You Order
A cable that will hang on a tower for years deserves a proper trial first. Free Evolux samples are built to the exact configuration you plan to buy, with your connector pairing, fiber, jacket and length, so your engineers can check sealing, port fit and optical loss on real equipment.
Once the sample passes, the volume order is produced to the same build. Nothing changes between what you approved and what you receive.
Ready to evaluate? Tell us your site type and connector pairing, and we'll prepare a sample with the quotation.

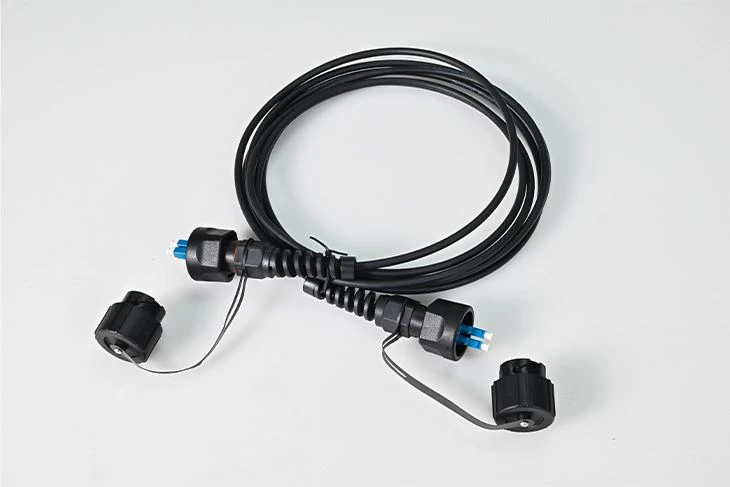

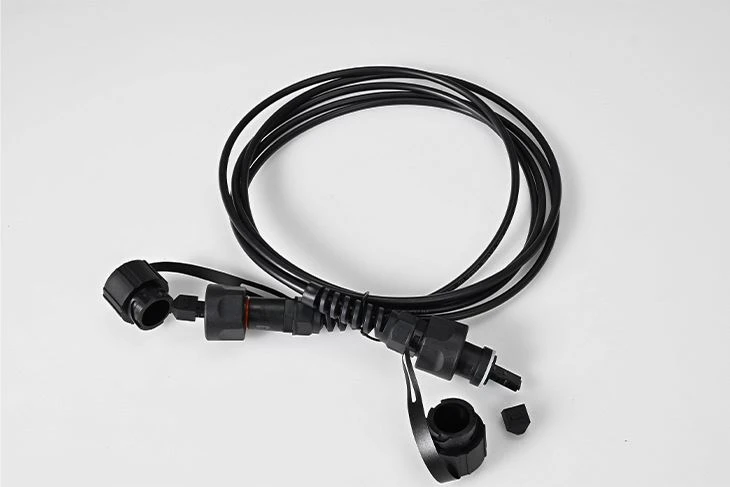

Outdoor Waterproof Fiber Patch Cord Gallery
Why Buyers Choose Evolux as Their Outdoor Fiber Patch Cord Manufacturer
Evolux is a Shenzhen fiber patch cord manufacturer and OEM supplier that has been building optical connectivity since 2013. Besides sealed outdoor assemblies, we produce connectors, adapters, pigtails, PLC splitters, terminal boxes and MPO/MTP cable assemblies for telecom, FTTH/ODN, enterprise and data center work.
One Supplier for the Whole Outdoor Route
Source the waterproof jumpers together with the splitters, terminal boxes and pigtails on the same route, from one factory and one purchase order.
Builds That Follow Your Project
Standard items or project-specific combinations, finished with your labels and packaging.
Engineers Who Answer Fast
Specification review and quotation within 24 hours, plus free samples before you commit volume.
Outdoor Waterproof Fiber Patch Cord Procurement FAQs
Should I choose IP67 or IP68 for an outdoor fiber patch cord?
IP67 handles rain and temporary immersion, which suits most tower-mounted FTTA links. IP68 is for buried routes, flood-prone handholes or any point where the connector can sit underwater for long periods.
Which connectors can be fitted to a waterproof fiber jumper?
Outdoor interfaces include ODVA, PDLC, FullAXS, ODC and AARC, and the equipment end can take LC, SC, FC or ST, simplex or duplex. Evolux, as an outdoor fiber patch cord manufacturer building to order, can combine different interfaces on one assembly.
Can an armored fiber patch cable be buried directly?
Yes. Stainless steel tube or aramid reinforcement gives at least 1000 N/100 mm short-term crush resistance, so the cable supports direct burial as well as duct and aerial installation.
How cold or hot can the installation site be?
The assembly is rated from -40°C to +70°C for both operation and storage. That covers winter tower sites as well as rooftops and desert installations under direct sun.
Do you offer custom lengths and private labeling for wholesale orders?
Yes. Evolux, as an OEM waterproof patch cord supplier, cuts lengths from 0.3 m to 500 m and applies your labels, cable printing and carton marking.
Can I test a sample before placing a volume order?
Free samples are available in your exact configuration. Evolux, as a factory-direct fiber jumper supplier, recommends field-testing sealing, fit and optical loss before approving production.
