When you plan a fiber optic network, one question shows up early: in a fiber patch panel vs ODF decision, which one belongs in your rack or telecom room? The short answer - reach for a fiber patch panel when you mainly need to terminate and cross-connect a small-to-medium number of fibers close to active equipment, and choose an ODF (Optical Distribution Frame) when higher-count backbone or feeder cables need fusion splicing, slack storage, cable fixing, and long-term distribution management.
That clean split hides something every field technician learns fast: the two product families overlap. Some rack-mount patch panels ship with splice trays, and some compact ODFs do little more than patching. So the real question is not "which name," but "which design focus matches the network position, the fiber count, and the way cables enter and leave the unit." This guide covers the differences, the gray area between them, a selection matrix, connector choices, and real project configurations so you can specify the right unit the first time. If you want the short version first, here is a focused look at the core differences between an ODF and a patch panel.
What Is a Fiber Patch Panel?

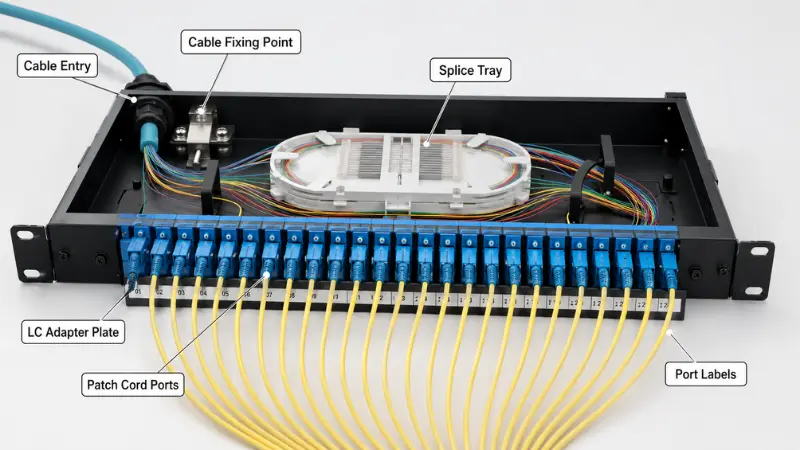

A fiber patch panel terminates incoming fibers onto a fixed set of adapters and gives technicians a clean front interface for patch cords. It is the point where a structured cable meets the jumpers that run to switches, routers, media converters, and optical transceivers. Most panels mount in a standard 19-inch rack in 1U, 2U, or 4U heights, though wall-mount enclosures are common for smaller cabinets.
Inside a typical panel you will find an adapter plate (LC, SC, FC, ST, or MPO/MTP), a cable entry and fixing point, front and rear jumper management, a labeling strip, and - on many models - a small splice tray for joining pigtails to the incoming cable. Day to day, the work at a patch panel is moves, adds, and changes: re-patching links without disturbing the permanent cable. That is also why front access and clear port numbering matter more here than deep slack storage.
Common patch panel types
- Fixed panels - adapters on a static plate; lowest cost, fine for stable links.
- Sliding (drawer) panels - the tray pulls forward for easier re-termination and inspection.
- High-density LC panels - pack the most duplex ports into 1U, because the LC's 1.25 mm ferrule is half the size of an SC's.
- MPO/MTP cassette panels - break out pre-terminated 12- or 24-fiber trunks for 40G/100G/400G links.
- Pre-terminated and splice-loaded panels - factory connectors for fast deployment, or factory-installed pigtails ready to splice on site.
Patch panels sit close to active gear: in data center racks, enterprise network rooms, server cabinets, and floor distribution points. When the task is rack-level patching, a 1U or 2U panel is usually all you need. The practical side of mounting a panel and wiring it into a switch is straightforward, and picking the right LC adapters for the port density is often the only real decision.
What Is an ODF (Optical Distribution Frame)?

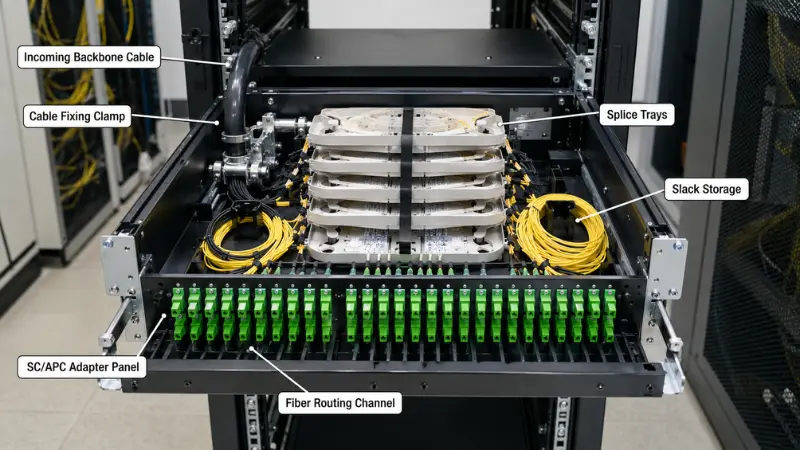

An ODF is a structured fiber management point built for bringing cables in, protecting them, joining them, and distributing them - not just patching. Compared with a plain panel, it is designed around higher fiber counts and the full life of an outside-plant or backbone cable: cable fixing and grounding, pigtail fusion splicing, slack storage, organized routing, labeling, and maintenance access in one frame.
A typical ODF carries adapter panels, multiple splice trays, dedicated routing channels and slack storage, cable-fixing clamps and grounding points for the cable's strength member, a protective cover or enclosed frame, and a clear numbering scheme. The reason this matters is physical: a 96F or 144F loose-tube feeder cable arrives with a steel or aramid strength member that must be anchored so no pulling force reaches the fibers, then each fiber is fusion-spliced to a pigtail and coiled with its bend radius protected. A small patch panel simply has nowhere to do that safely.
Common ODF types
- Rack-mounted ODF - fits a 19-inch rack; the workhorse for telecom rooms and OLT cabinets.
- Wall-mounted ODF - for smaller distribution points with limited floor space.
- Floor-standing ODF - high-capacity frames for central offices and large POP sites.
- Modular ODF / ODF cabinet - splice, splitter, and distribution modules combined as the network grows.
You will see ODFs in telecom central offices, FTTH access rooms, ISP equipment rooms, POP sites, metro and backbone distribution, and building main distribution rooms. The clearest signal you need one is an incoming high-count cable that must be fusion spliced to pigtails terminated with, say, SC adapters, with slack and protection for years of service. For a neutral background on the trade-offs, the FOA's overview of outside-plant splicing and termination is a solid reference. And because ODFs come in several mounting styles - which trips up a lot of first-time buyers - it is worth reading the main types of optical distribution frames before you size a frame.

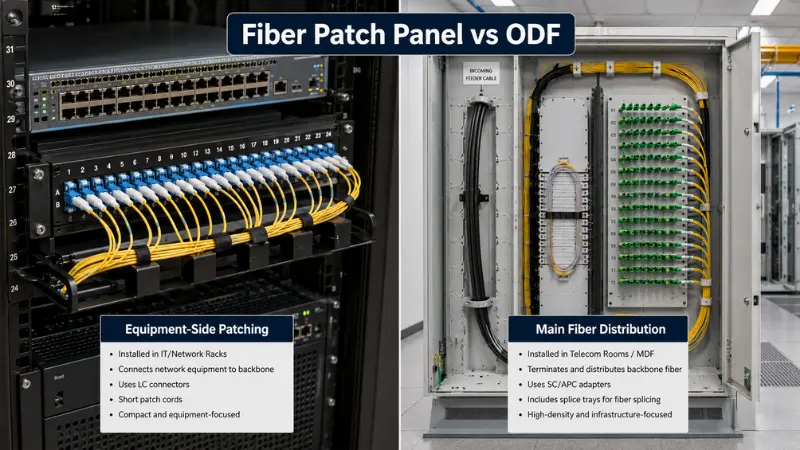

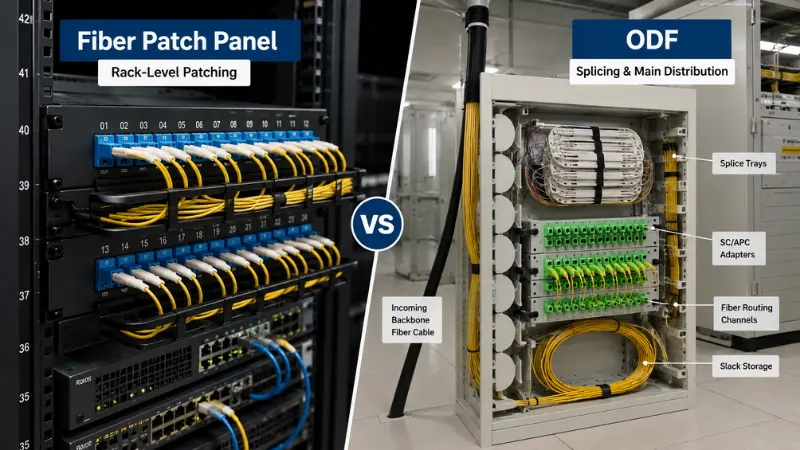

Fiber Patch Panel vs ODF: The Real Differences
Both manage fiber, but their design priorities pull in different directions. The table below goes a step past the usual one-liners.
| Comparison point | Fiber patch panel | ODF |
|---|---|---|
| Primary design focus | Termination and cross-connect (patching) | Termination, splicing, protection, routing, distribution |
| Typical network position | Equipment-side, inside racks and cabinets | Main distribution: telecom room, FTTH room, central office, POP |
| Typical fiber count | 12F–48F | 48F–144F and above |
| Splice capacity | Optional, limited tray space | Multiple trays; a core part of the design |
| Physical structure | Compact 1U–4U or wall box | Larger frame, often enclosed and protected |
| Cable entry and fixing | Basic strain relief | Heavy fixing, grounding for strength members |
| Slack and routing | Minimal | Dedicated slack storage and routing channels |
| Front / rear access | Front-access patching | Front and rear access for splice and patch |
| Installation | Rack or wall | Rack, wall, floor, or cabinet |
| Expansion method | Limited by ports and U-space | Add modules and trays; built for growth |
| Maintenance | Quick patch changes | Structured long-term splice and patch management |
| Relative cost | Lower per port | Higher, but fewer units for high counts |
Where the Line Blurs: Functional Overlap?
Treating "patch panel = patching only" and "ODF = splicing only" will eventually mislead you. Plenty of rack-mount patch panels include a splice tray, and a small ODF may be used mostly for patching. The honest description is about emphasis: a patch panel is optimized for equipment-side jumper management in a compact space, while an ODF is optimized for cable entry, splice protection, slack storage, and structured distribution that has to last. When you compare spec sheets, read the internal structure - tray count, slack capacity, cable-fixing hardware - not just the adapter count. Two units can both say "48 ports" and be built for completely different jobs.
ODF vs Fiber Patch Panel vs Fiber Distribution Box
A third product muddies the comparison: the fiber distribution box, or terminal box. Roughly:
- Fiber patch panel - rack-level termination and patching near equipment.
- ODF - main-distribution-level termination, splicing, protection, and routing for medium-to-high fiber counts.
- Fiber distribution / terminal box - a smaller, often wall- or pole-mounted enclosure closer to end users, frequently outdoor-rated, that may also house a splitter.
In one network you might see all three: an ODF in the main room, patch panels in the equipment racks, and terminal and distribution boxes at building entries or on each floor. If the boundaries still feel fuzzy, this breakdown of how fiber distribution products differ is worth a read.
How to Choose: A Step-by-Step Process?
-
Identify the network position
- Equipment-side (next to switches and OLTs) leans patch panel; a main distribution point that receives outside cables leans ODF.
-
Confirm current and future fiber count
- 12F–24F suits small cabinets and floor distribution, 48F is common for enterprise backbones and small rooms, and 96F–144F+ points to FTTH OLT rooms, POP sites, and central offices.
-
Decide whether fusion splicing is required
- If a loose-tube feeder cable has to be opened, fixed, and spliced to pigtails, you need real splice-tray capacity and slack storage - that is ODF territory.
-
Confirm connector and polish type
- It must match the existing plant; LC/UPC for high-density racks, SC/APC for most PON and access work.
-
Check the installation space
- 1U–2U rack or a wall box for tight rooms; rack, wall, or floor ODF where capacity outweighs space.
-
Plan cable entry and fixing
- Rear, side, top, or bottom entry should match the site, with clamps, strain relief, and grounding for armored or OSP cable.
-
Reserve expansion capacity
- Spare adapter slots and tray space now are far cheaper than swapping the whole unit later.
Fiber Patch Panel vs ODF Selection Matrix
| Project condition | Better choice | Why |
|---|---|---|
| 1U rack patching beside a switch | Fiber patch panel | Compact, front-access jumper management |
| 48F branch with only a few splices | Splice-loaded patch panel is often enough | Limited splicing fits a tray-equipped panel |
| 96F–144F feeder cable with full splicing | ODF | Tray capacity, slack storage, cable fixing and grounding |
| FTTH telecom / OLT room | ODF | Feeder and distribution management, SC/APC density |
| Small office or single floor link | Fiber patch panel | Low complexity, low fiber count |
| Backbone plus equipment racks | Both | ODF for main distribution, panels equipment-side |
| Pre-terminated MPO/MTP trunk | MPO/MTP cassette patch panel | No field splicing; fast, high-density breakout |
Connector and Polish: LC, SC, MPO, and UPC vs APC
Adapter and polish choice often matters more than the panel-vs-ODF question itself, because it has to match the existing plant. LC dominates high-density racks and data centers - its 1.25 mm ferrule lets a 1U panel carry 96 fibers or more, which is why it is the default duplex connector in ANSI/TIA-568 structured cabling. SC is the staple of FTTH and telecom access: the 2.5 mm ferrule and push-pull latch are robust and easy to handle in the field, and SC/APC is common wherever back reflection must stay very low. FC still appears on test equipment and some legacy or high-vibration setups, while MPO/MTP carries the pre-terminated trunks behind 40G/100G/400G links. The practical density trade-offs are laid out in this comparison of LC and MTP/MPO in high-density cabling.
Polish is the part people get wrong. PC and UPC ferrules make physical contact for low loss; an APC ferrule adds an 8-degree angle so reflected light is steered into the cladding instead of straight back toward the source, as the FOA's connector reference explains. That makes APC the choice for PON, RF/CATV video, and high-bitrate single-mode links - but it also means you must never mate an APC connector to a UPC one: the angled and flat end faces will not seat, loss spikes, and you can damage the ferrules. Plan one polish per path. For the detail, see this guide to PC, UPC, and APC polish types and the dedicated SC/APC connectors overview.
Real Project Configuration Examples
24-port enterprise rack
A floor network room only needs to connect a handful of switches to the riser fiber. A 1U, 24-port LC/UPC patch panel - either pre-terminated or with pigtails spliced on a small tray - gives clean front-access patching with room to spare. An ODF here would be wasted space and cost.
144F FTTH telecom room
The incoming feeder cable is anchored and grounded at the frame, each fiber is fusion-spliced to an SC/APC pigtail, slack is coiled with its bend radius protected, and patch cords run to the OLT. With splice trays, routing, and 144 terminations to manage for years, a rack-mounted ODF is far easier to live with than stacking several small panels. Nearby PLC splitters feed the distribution network; if you are sourcing the passive side, this FTTH passive components guide is a useful checklist.
Data center trunk cabling
40G/100G links run on pre-terminated MPO/MTP trunks broken out by cassette patch panels. The priority is port density, polarity, and clean routing under standards-based structured cabling - not splicing - so a panel beats an ODF here.
Building backbone (layered design)
The main equipment room uses an ODF to terminate and distribute riser fibers between floors; each floor uses a patch panel for local switch connections. The backbone stays stable while patching stays flexible - and that is usually the most maintainable answer for a multi-floor building.
Pre-Purchase Checklist: Ports, Adapters, Splice Trays, and Rack Size
| Parameter | Why it matters | Patch panel focus | ODF focus |
|---|---|---|---|
| Fiber / port count | Sets capacity and headroom | 12–48F today, plus spare | 48–144F+ with module room |
| Adapter and polish | Must match the plant | LC/UPC density | SC/APC for PON, plus LC |
| Splice-tray capacity | Protects and stores joints | Often one small tray | Multiple trays sized to the count |
| Mount / rack type | Fits the space | 1U–2U or wall | Rack, wall, floor, or cabinet |
| Cable entry and fixing | Keeps stress off fibers | Light strain relief | Clamp and grounding for OSP cable |
| Bend-radius control | Loss and reliability | Tidy jumper routing | Routing rings and slack storage |
| Labeling | Fewer maintenance errors | Front port labels | Full port and splice numbering |
| Expansion headroom | Avoids full replacement | Spare U-space | Spare slots and tray space |
Common Mistakes - and What They Cost
-
Buying by port count alone
- Two "48-port" units can differ completely inside; you may end up with no slack or trays and a panel that is painful to maintain.
-
-
Using a plain patch panel for heavy splicing
- Trays overflow, fibers get bent past their limit, and splice protection suffers - surfacing later as loss or intermittent links.
-
-
Ignoring cable entry direction
- Entry that fights the site layout puts strain on fibers and makes installation slow and messy.
-
-
Mixing connectors and polish without a plan
- An APC-to-UPC mismatch alone can wreck a single-mode link's return loss. Decide LC/SC and UPC/APC up front, and weigh how you terminate with this look at fast connectors versus fusion splicing.
-
-
Leaving no expansion headroom
- When the count grows, a full unit with no spare slots or tray space means replacing the whole thing instead of adding to it.
FAQ
Q: Is An ODF The Same As A Fiber Patch Panel?
A: No. Their functions overlap, but a patch panel is built for equipment-side termination and patching, while an ODF adds splicing, cable protection, slack storage, and structured distribution for the long term.
Q: Can I Use A Fiber Patch Panel Instead Of An ODF?
A: Yes, for simple links with a low fiber count and little or no splicing. Once you have high counts, incoming feeder cables, or heavy fusion splicing, an ODF is the safer choice.
Q: Does Every Fiber Patch Panel Include Splice Trays?
A: No. Many are adapter-only, for pre-terminated or jumper use; others are splice-loaded with a tray for pigtails. Check the spec before you assume.
Q: What Is The Difference Between An ODF And A Fiber Distribution Box?
A: An ODF is a larger main-distribution frame, usually indoor and rack- or floor-mounted. A distribution box is a smaller, often outdoor-rated enclosure closer to subscribers that may also hold a splitter.
Q: Is An ODF Only Used In FTTH Networks?
A: No. ODFs are common in central offices, ISP rooms, and metro and enterprise backbones - anywhere high-count cables need termination, splicing, and distribution.
Q: Should I Choose SC Or LC Adapters?
A: Match the plant. LC for high-density racks and data centers; SC, often SC/APC, for FTTH and telecom access.
Q: Can I Install An ODF In A 19-Inch Rack?
A: Yes. Rack-mounted ODFs are standard for telecom rooms and OLT cabinets; wall and floor versions exist for other spaces.
Q: Which Is Better For A Data Center?
A: Usually fiber patch panels - LC or MPO/MTP - for rack-level patching, with an ODF only where a large backbone distribution area needs splicing and protection.
Q: At 48 Fibers, Do I Pick A Patch Panel Or An ODF?
A: It depends on splicing. Little or no splicing and tight space points to a splice-loaded or pre-terminated patch panel. An incoming feeder cable that needs full splicing, slack, and grounding points to a 48F ODF - especially if you expect to grow to 96F.
Q: What Should I Check Before Buying?
A: Fiber and port count plus headroom, adapter and polish type, splice-tray capacity, mount type and rack units, cable entry and fixing, bend-radius control, and the labeling scheme.
If the job is clean rack-level patching, a fiber patch panel is the practical, cost-effective pick. If you are terminating high-count or incoming backbone cables that need splicing, protection, slack storage, and years of distribution management, an ODF earns its place. Large networks usually run both - an ODF for main distribution, patch panels equipment-side. Whichever you specify, confirm the count and headroom, adapter and polish type, splice capacity, mount and rack size, and cable entry before you order, so the unit fits both today's install and next year's growth.
