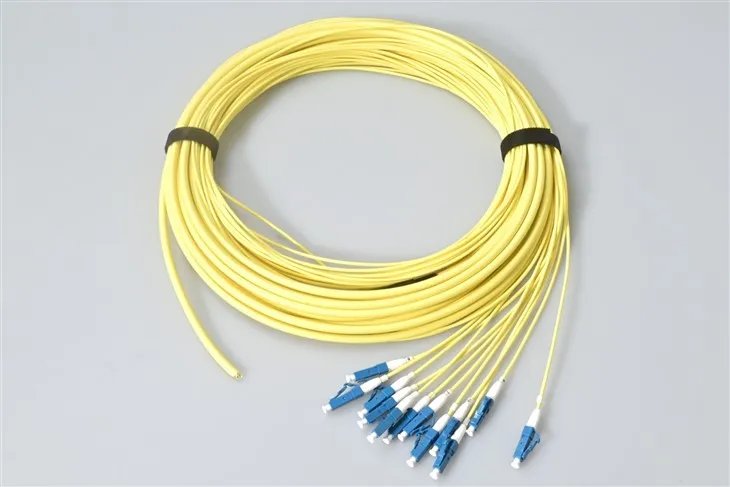

In the world of fiber optic networks, every component plays a crucial role in ensuring seamless connectivity. Enter the Fiber Optic LC Pigtail, a game-changer for efficient and reliable data transmission. These pigtails are designed to make the connection between optical fiber cables and telecommunication equipment a breeze. With an LC connector already attached, they simplify the installation process and provide a secure link.
Why Choose US?
Experience and Expertise:
We are not just another fiber optic supplier; we are industry leaders with a proven track record. Since 2013, we have been at the forefront of optical fiber technology, delivering cutting-edge solutions to our global clientele. Our team comprises highly skilled professionals, including researchers, engineers, and market experts, who are passionate about pushing the boundaries of innovation.
Quality and Reliability:
We understand that in the world of telecommunications, quality is non-negotiable. That's why we use only the finest materials and adhere to strict quality control measures.
Our Fiber Optic LC Pigtails are crafted with ceramic ferrules, ensuring durability and longevity. Zirconia materials further enhance reliability and stability, giving you peace of mind.
Customized Solutions:
We believe in providing tailored solutions to meet the unique needs of our customers. Our products can be customized to suit various lengths, connector types, and fiber types, ensuring a perfect match for your network infrastructure.
Product Specifications
|
Connector |
LC |
Fiber Count |
Simplex |
|
Fiber Mode |
9/125;50/125;62.5/125 |
Minimum Bend Radius |
10 mm |
|
Polish Type |
Cable Diameter |
0.9mm/2.0mm/3.0mm |
|
|
Cable Jacket |
PVC/LSZH |
Jacket Color |
Yellow/Orange/OM3/OM4 |
|
Wavelength |
1310nm/1550nm |
Durability |
500Times |
|
Insertion Loss |
≤0.3 dB |
Interchangeability |
≤0.2 dB |
|
Return Loss |
≥60 dB |
Vibration |
≤0.2 dB |
|
Operating Temperature |
-40~75°C |
Storage Temperature |
-45~85°C |
Product Features
- Durability and Longevity: Our pigtails are made from high-quality materials, ensuring they deliver long-lasting performance. With ceramic ferrules and zirconia components, they provide outstanding reliability even in demanding environments.
- Effortless Installation: Featuring pre-installed connectors, our SC pigtails simplify the setup process, allowing for quick and easy installation, saving time for network technicians.
- High-Speed Data Transfer: Designed for modern networks, these pigtails support high-bandwidth applications with low insertion loss for efficient data transmission.
- Versatile Compatibility: Compatible with various Fiber Optic SC Pigtail connectors like LC, ST, and MTRJ, our pigtails integrate seamlessly into existing networks.
Product Applications
Optical Distribution Frame (ODF) Termination
The 12-core bundled design streamlines mass fiber termination in ODF systems. Each pigtail is pre-connectorized with SC/UPC for direct fusion splicing to incoming trunk cables, reducing installation time in central offices.
FTTH Splitter Cabinets
Fiber-to-the-home deployments use 12-core pigtails to terminate PLC splitter outputs. The bundled structure keeps fibers organized within splitter enclosures and outdoor distribution cabinets.
Data Center Cross-Connect Panels
High-density fiber patching in data centers benefits from pre-terminated pigtail bundles. The zirconia ceramic ferrules ensure consistent low-loss connections across hundreds of mating cycles during routine moves, adds, and changes.
Telecommunications Splice Closures
Outdoor and underground splice closures require reliable pigtail bundles for trunk cable fan-out. The operating temperature range of -40°C to +75°C supports deployment in extreme climate conditions.
Enterprise Building Backbone Cabling
Multi-floor commercial buildings use 12-core pigtails at fiber distribution hubs to connect vertical backbone cables to floor-level patch panels, simplifying structured cabling installations.
CATV Fiber Node Installations
Cable TV fiber nodes require dense pigtail terminations for signal distribution. The SC/UPC polish type delivers return loss ≥60dB, meeting broadcast signal quality requirements.
Quality Control
At Shenzhen Evolux Fiber Co., Ltd, we take quality seriously. Our rigorous quality control processes ensure that every product meets the highest standards.
OEM Service
We understand that one size doesn't fit all. That's why we offer OEM services, allowing you to customize our products to your brand and specific requirements. Our team will work closely with you to ensure your unique needs are met.
FAQ
Q1: What does "12-core" mean for this fiber pigtail?
A: This pigtail bundle contains 12 individual fibers, each terminated with an SC/UPC connector. The bundle structure simplifies high-volume splicing by keeping all fibers organized and color-coded.
Q2: What is the advantage of zirconia ceramic ferrules?
A: Zirconia (ZrO2) ceramic ferrules provide excellent hardness, thermal stability, and precision end-face geometry. This ensures consistent insertion loss ≤0.3dB and supports over 500 mating cycles without degradation.
Q3: What jacket material options are available?
A: This pigtail is available in PVC or LSZH (Low Smoke Zero Halogen) jacket. LSZH is recommended for indoor installations where fire safety codes require reduced smoke and toxic gas emission.
Q4: What is the standard length of this 12-core pigtail?
A: Common lengths include 1m, 1.5m, and 2m. Custom lengths can be manufactured based on project requirements-contact our sales team for OEM options.
Q5: Is this pigtail compatible with single-mode and multimode systems?
A: This pigtail is available in single-mode (9/125μm) and multimode (50/125μm, 62.5/125μm) versions. Please specify fiber type when ordering to match your network infrastructure.
Q6: How should the pigtails be spliced to trunk cables?
A: The bare fiber end of each pigtail is fusion spliced to the corresponding trunk fiber using a fusion splicer. Standard splice protection sleeves should be applied to each joint, and all splices should be organized within a splice tray.
Q7: What is the operating temperature range?
A: This pigtail operates reliably from -40°C to +75°C, making it suitable for both climate-controlled indoor environments and outdoor enclosures.
Q8: Can I order SC/APC instead of SC/UPC?
A: Yes. SC/APC 12-core pigtails are available for applications requiring angled physical contact, such as CATV systems and PON networks where higher return loss is needed.
Q9: Are individual fiber colors standardized?
A: Yes. The 12 fibers follow TIA-598 color coding (blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, aqua), enabling easy identification during splicing.
Q10: What certifications does this product meet?
A: Our pigtails comply with IEC, Telcordia GR-326, and RoHS standards. Test reports are available upon request.
About Us
Shenzhen Evolux Fiber Co., Ltd. is a trusted leader in the fiber optics industry, recognized for innovative solutions and a strong global presence. Our expert team is dedicated to delivering exceptional products and services that ensure your network infrastructure is future-proof. Ready to enhance your fiber optic network? Contact us at sales@evoluxfiber.com and shanna@evoluxfiber.com to explore how our Fiber Optic SC Pigtails can elevate your connectivity!
