Key Features & Benefits

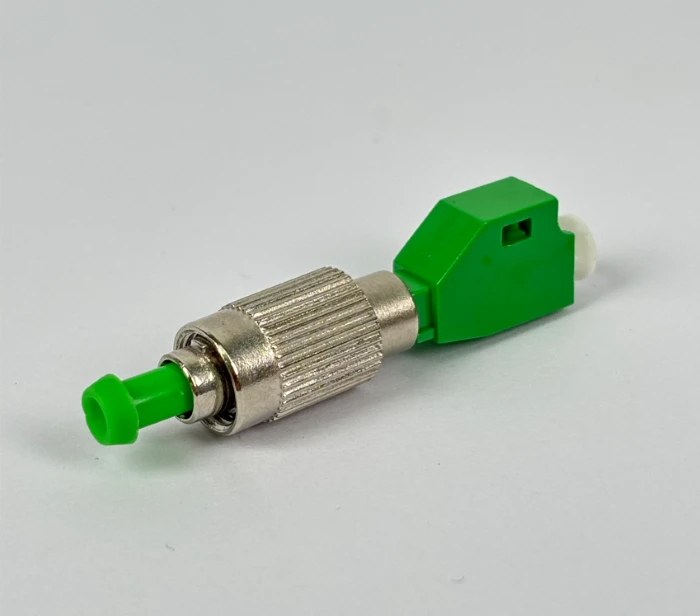

Hybrid Connectivity: Converts an FC/APC male interface to an LC/APC female interface, enabling seamless integration between legacy FC-based equipment and modern LC-based systems
Angled Physical Contact (APC) Polish: Both ports feature 8° angled polish, delivering high return loss (≥50–65 dB) to minimize back reflections and enhance signal integrity in sensitive applications
Premium Zirconia Ceramic Sleeve: High-precision alignment sleeve ensures accurate fiber core mating with low insertion loss and excellent repeatability
Single-Mode 9/125μm Compatibility: Optimized for standard single-mode fiber transmission across 1200–1620nm wavelength range
Durable Construction: Robust metal housing provides reliable mechanical protection and long-term stability in demanding environments
Simplex Configuration: Single-channel design ideal for simplex transmission paths
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type A | FC/APC (Male, 2.5mm ferrule) |
| Connector Type B | LC/APC (Female, 1.25mm ferrule) |
| Fiber Mode | Single-Mode 9/125μm |
| Insertion Loss | ≤0.3 dB (Typical: ≤0.2 dB) |
| Return Loss | ≥50 dB (APC polish) |
| Operating Wavelength | 1200nm – 1620nm |
| Sleeve Material | Zirconia Ceramic |
| Housing Material | Metal |
| Durability | ≥1000 mating cycles |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -45°C to +85°C |
| Weight | Approx. 7–8g |
Applications
Telecommunication Networks: Interconnecting FC-based transmission equipment with LC-based patch panels and distribution frames
CATV Systems: Enabling hybrid connectivity in cable television fiber distribution networks
Data Centers: Converting FC legacy ports to LC interfaces for integration into modern high-density fiber infrastructure
Fiber-to-the-Home (FTTH): Supporting mixed connector environments in access networks
Test & Measurement: Facilitating equipment testing where both FC and LC interfaces are present
Local Area Networks (LAN): Providing flexible connectivity solutions in enterprise fiber networks
Why Choose This Hybrid Adapter?
This FC/APC to LC/APC hybrid adapter provides a cost-effective, space-saving solution for environments where multiple connector types coexist. By eliminating the need for hybrid cables or multiple conversion steps, it simplifies network architecture, reduces insertion loss points, and maintains optical performance standards across heterogeneous systems.
Warranty: 1-year warranty against manufacturing defects. Performance test report available upon request.
