40g Qsfp+ Active Optical Cable (aoc)

40G QSFP+ Active Optical Cable (AOC)
●Support 4x10GBASE-SR application
●Compliant to QSFP MSA SFF-8436 and SFP+ MSA SFF-8431 and SF-8472
●Multi rate of up to 10.3125Gbps per lane
●+3.3V single power supply
●Low power consumption
●UL certification cables (optional)
●Operating case temp Commercial: 0°C to +70 °C
●RoHS compliant

Send Inquiry

Order information

Part No.	Bit Rate(Gbps)	Laser(nm)	Distance	Fiber type	DDMI	Connector	Temp
TLP850M10GQAX1-4#X2X3X4	10.3125	850	1~50m	MMF	YES	N/A	0℃~+70℃
X1: P-PVC/OFNP/UL;U-LZSH/OFNR/UL
X2: A-OM2;B-OM3;C-OM4
X3X4: 1~99---1M~99M;A1---1.5M;

absolute Maximum Ratings

Parameter	Symbol	Min.	Typical	Max.	Unite	Notes
Supply Voltage	Vcc3	-0.5	-	+3.6	V
Storage Temperature	Ts	-10	-	+70	℃
Operating Humidity	RH	+5	-	+85	%	1

recommend Operating Conditions

Parameter	Symbol	Min.	Typical	Max.	Unit	Notes
Operating	Tc	0	-	+70	℃
Power Supply Voltage	Vcc	3.14	3.3	3.47	v
Power Dissipation per QSFP+	Pd	-	-	1.5	w
Power Dissipation per SF+	Pd	-	-	0.6	w	1
Bit Rate per Lane	BR	-	10.3125	-	Gbps

Electrical Characteristics

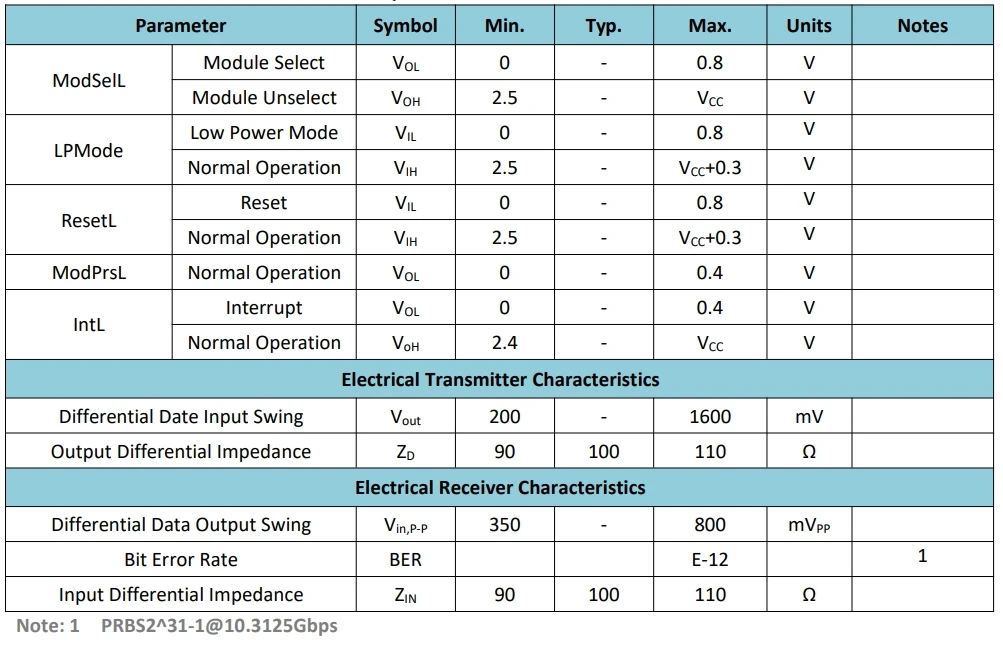

Electrical Characteristics for QSFP+

product-1003-645

Electrical Characteristics for SFP+

product-1003-478
