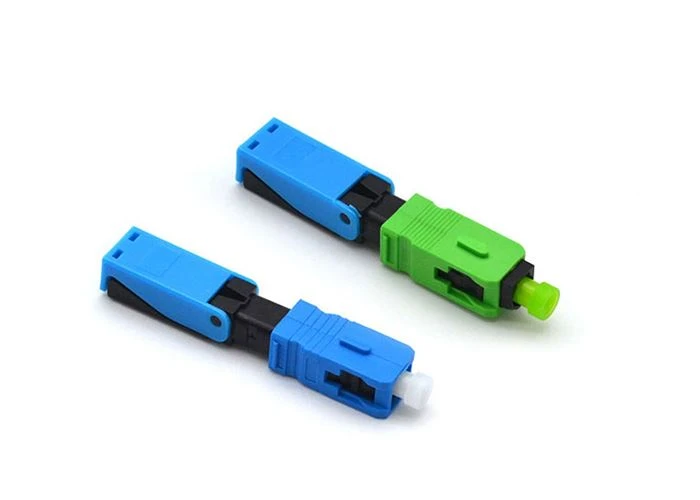

Product Introduction
Quick assembly connector is used for field-installable optical fiber connector, widely used in FTTH access optical network, include Single mode and Multimode and suitable for 2*3.0mm drop cable and also can be suitable with 0.9mm, 2.0mm, 3.0mm indoor fiber optic cable.
Product Specifications
|
Item |
Technical Parameters |
Item |
Technical Parameters |
|
Applicable for |
Drop cable,indoor cable |
Tensile strength |
≥50N |
|
Fiber mode |
Single mode or Multi mode |
Reusable Time |
≥ 10 times |
|
Operation time |
About 50 seconds (not including fiber cut time) |
Operating Temperature |
-40~+85℃ |
|
Insertion Loss |
≤0.5dB |
On-line tensile strength(20N) |
△IL≤0.3dB |
|
Insertion Loss Typical Value |
0.3dB |
Mechanical durability(500 times) |
△IL≤0.3dB |
|
Return Loss |
≥50dB |
Drop-off test (drop off height 4m,once per direction,totally 3 times) |
△IL≤0.3dB |
|
Fastening strength of naked fiber |
≥5N |
Features
Fiber optic fast connectors, also called fiber optic quick connectors, fiber optic quick assembly connector, fiber optic field assembly connector, fiber optic fast assembly connectors.
Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and precast type of products, whose optical and mechanical specification meets the standard optical fiber connector.It is designed for high quality and high efficiency for installation.
The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.
Adopted fiber preinstalled structure, and convenient for field installation.
Fast connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.
The connectors mechanically couple and align the cores of fibers so light can pass.
Better connectors lose very little light due to reflection or misalignment of the fibers.
Application
FTTH/FTTX/FTTD
Distribution frames
Maintenance or emergency restoration of fiber networks
Connection at the desk for LAN environments
Terminal box
